The LANID - Link Tester & Port Finder is an essential tool for verifying and trouble shooting local area networks. It is designed for network administrators to quickly diagnose problems during LAN installation and repair. Auto–Negotiation with Devices: LANID - Link Tester & Port Finder features the ethernet standard “auto–negotiation” function to obtain the operating speed for LAN devices. The “auto–negotiation” function provides automatic speed matching for multi–speed devices, allowing devices to configure to the best possible mode of operation over a link. The port-finder feature sends discontinuity auto-negotiation signal to communicate with 10/100M hub/switch. The corresponding LED indicator on 10/100M hub/switch panel will blink.

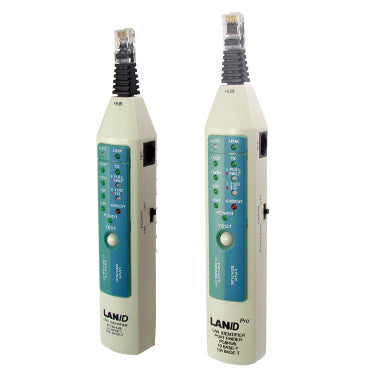

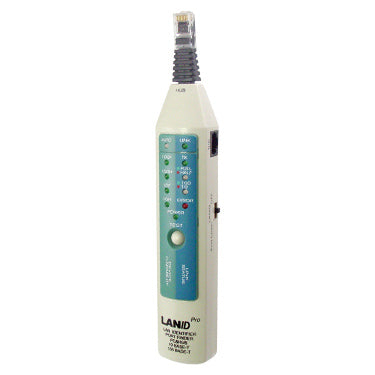

Furthermore, the LANID Pro - Link Tester & Port Finder has the same features as the LANID - Link Tester & Port Finder and is also equipped with a port-finder function to quickly identify the corresponding port location on the switch/hub.
- Comply with IEEE802.3 Ethernet standard PHY in high speed auto communication protocol
- Power auto off function can reduce battery power loss
- Display current online status by LED

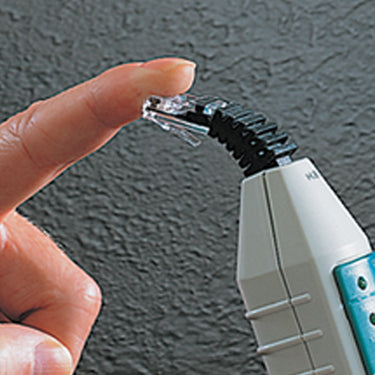

- RJ-45 connector can be connected with standard network equipment
- Easy to carry and use with pen style design
- Identifies the port speed up to 100

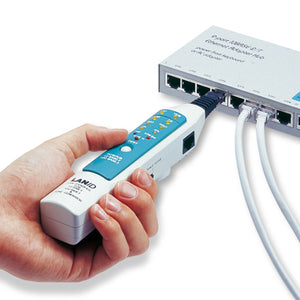

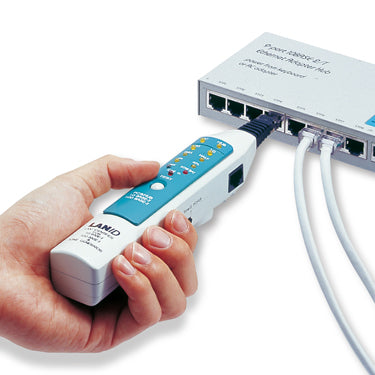

- With port-finder function to sends discontinuity auto-negotiation signal to communicate with hub/switch. The corresponding LED indicator on the hub/switch panel will blink
Specifications
- RoHs Compliant
- Port Type: RJ-45
- Battery: 1.5VAAA x 2
- Display: LED Instructions
- Dimensions: 215 x 38 x 36mm
- Weight: 106.3 g
- Operating temp. : 0ºC to 70ºC (32ºF to 158ºF)
- Download Product Specification Sheet
