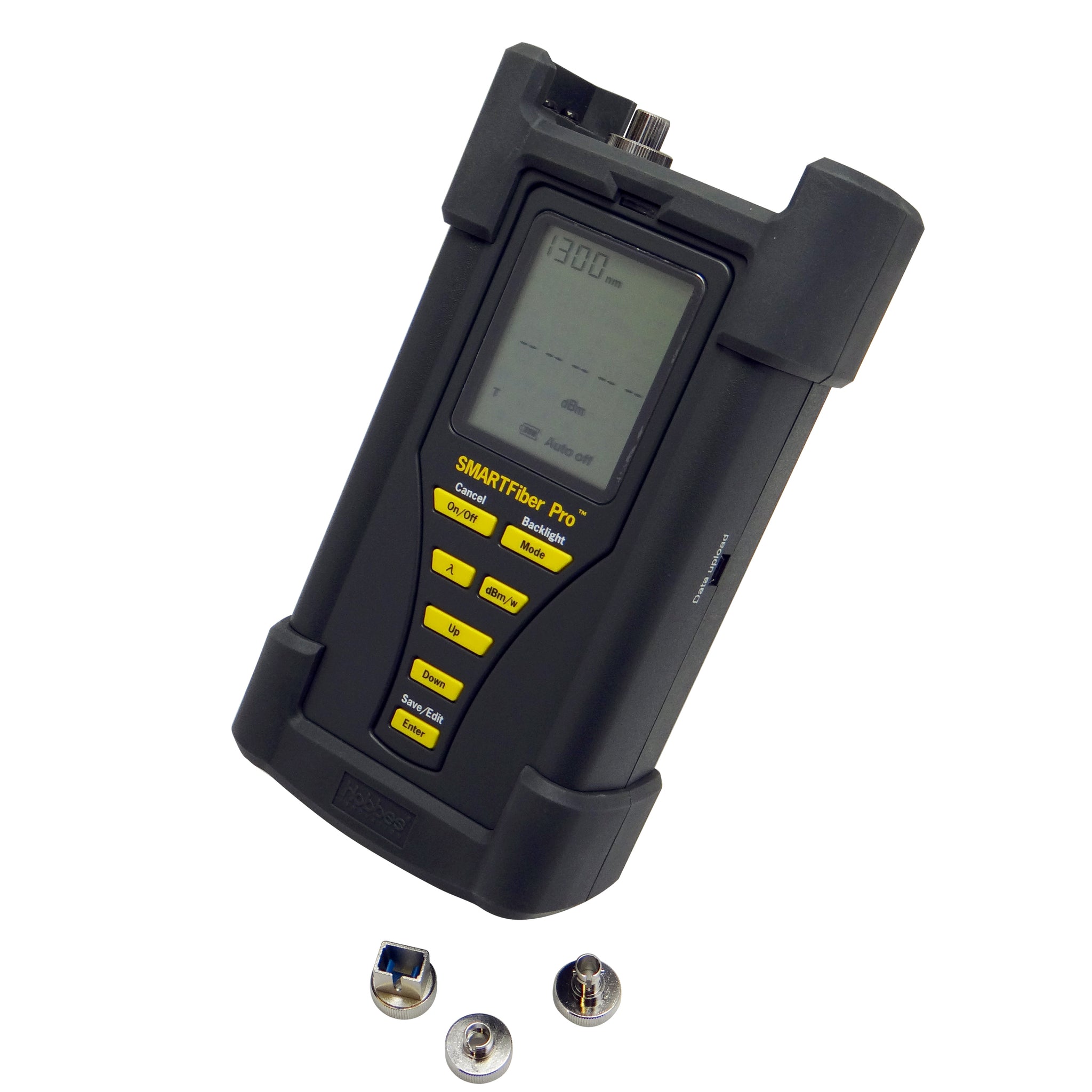

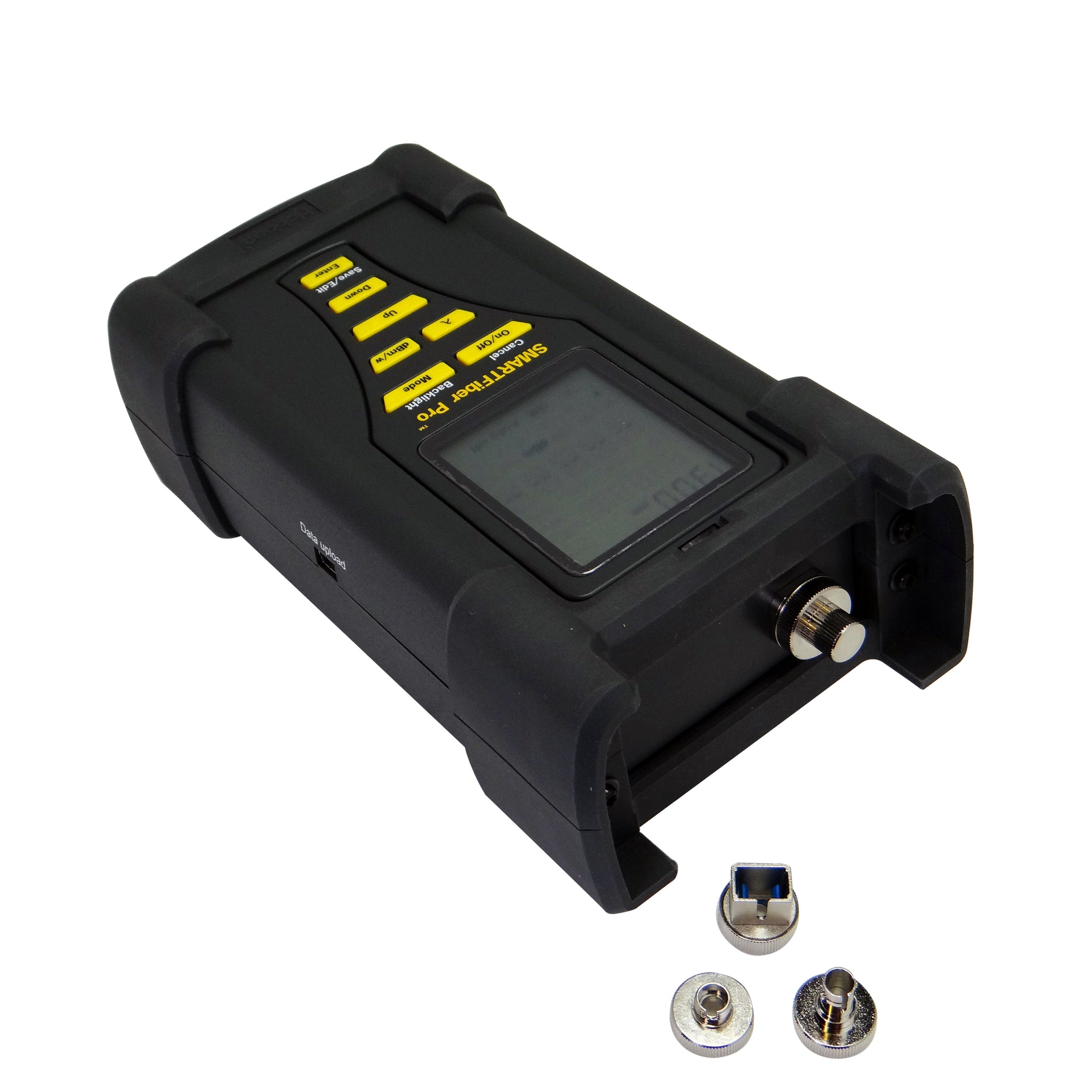

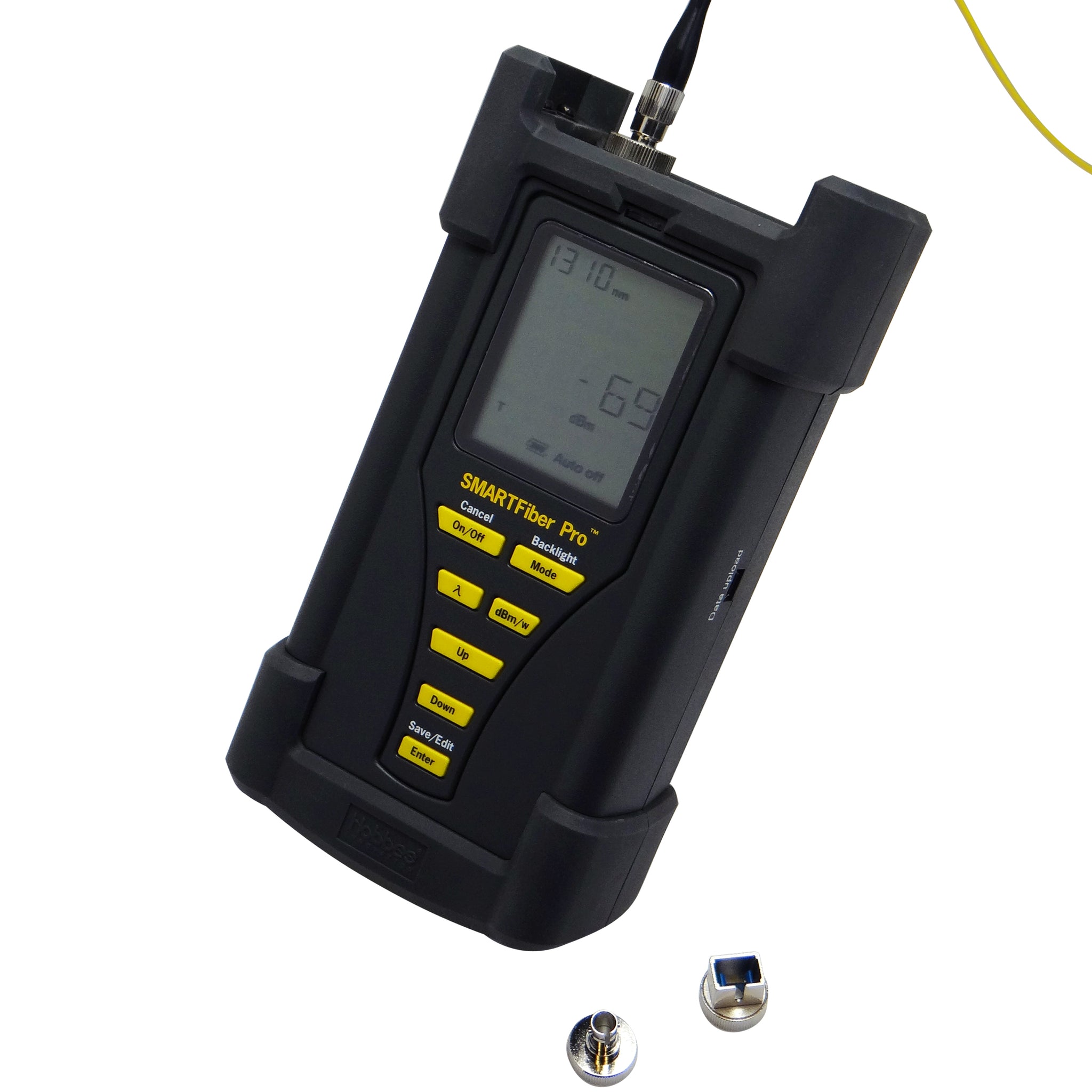

This Optical Power Meter is a 6 wavelength (850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm), high accuracy optical power measuring tool designed for fiber cable systems.
The SMARTFiber Pro Optical Power Meter has a dynamic range of +3 to –60dBm for Singlemode and Multimode cables. It has an interchangeable interface for testing FC, ST, SC, and 2.5mm (optional) type connectors. With its "user-defined" function, users have the ability to set specific standards to quickly identify cables during mass cable testing. SMARTFiber Pro will test and display a "pass" or "fail" result to indicate if it meets users' set requirements.
The SMARTFiber Pro can receive modulated signals (270Hz, 1kHz, 2kHz) simultaneously for identifying and continuity testing of fiber cables. It utilizes an InGaAs detector for high sensitivity and temperature stability. It also includes internal storage with a capacity to record up to 1000 test data. Data stored on the unit is transferable to a PC for reference, analysis, and report purposes.
SMARTFiber Pro Optical Power Meter is an essential tool that is significant for installation, laboratory research, development, maintenance, and many other optical network operations.
Key Features:
- 6 Wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
- Self Calibrating ZERO Function
- Interchangeable Connectors: FC, ST, SC, and 2.5mm (optional) type interface for maximum flexibility
- Sensor Type: InGaAs for greater sensitivity and stability
- Dynamic Range: +3 to –60dBm
- Accuracy: ±0.15dB±1nW@1300nm /1310nm /1490nm/1550nm; ±0.25dB±1nW@850nm/1625nm
- Custom Standards (user-define) for Mass Cable Testing with "Pass/Fail" Indicator
- Identify Modulate Signals (270Hz, 1kHz, 2kHz)
- 3 Unit Measurement: dBm, Watt, dB
- 1000 Data Storing and Uploadable to PC
- Automatic wavelength detection (when used with Hobbes OPTISource as laser light source)
- Ideal for Both Multimode and Singlemode Optical Fibers
- Relative and Absolute Power Display
- Battery Indicator & Auto Power-Off Function
- Portable, High Accuracy and Dynamic Power Meter
Part# 257835 Pro SMARTFiber Pro - Fiber Optic Power Meter (850/1300/1310/1490/1550/1625)
