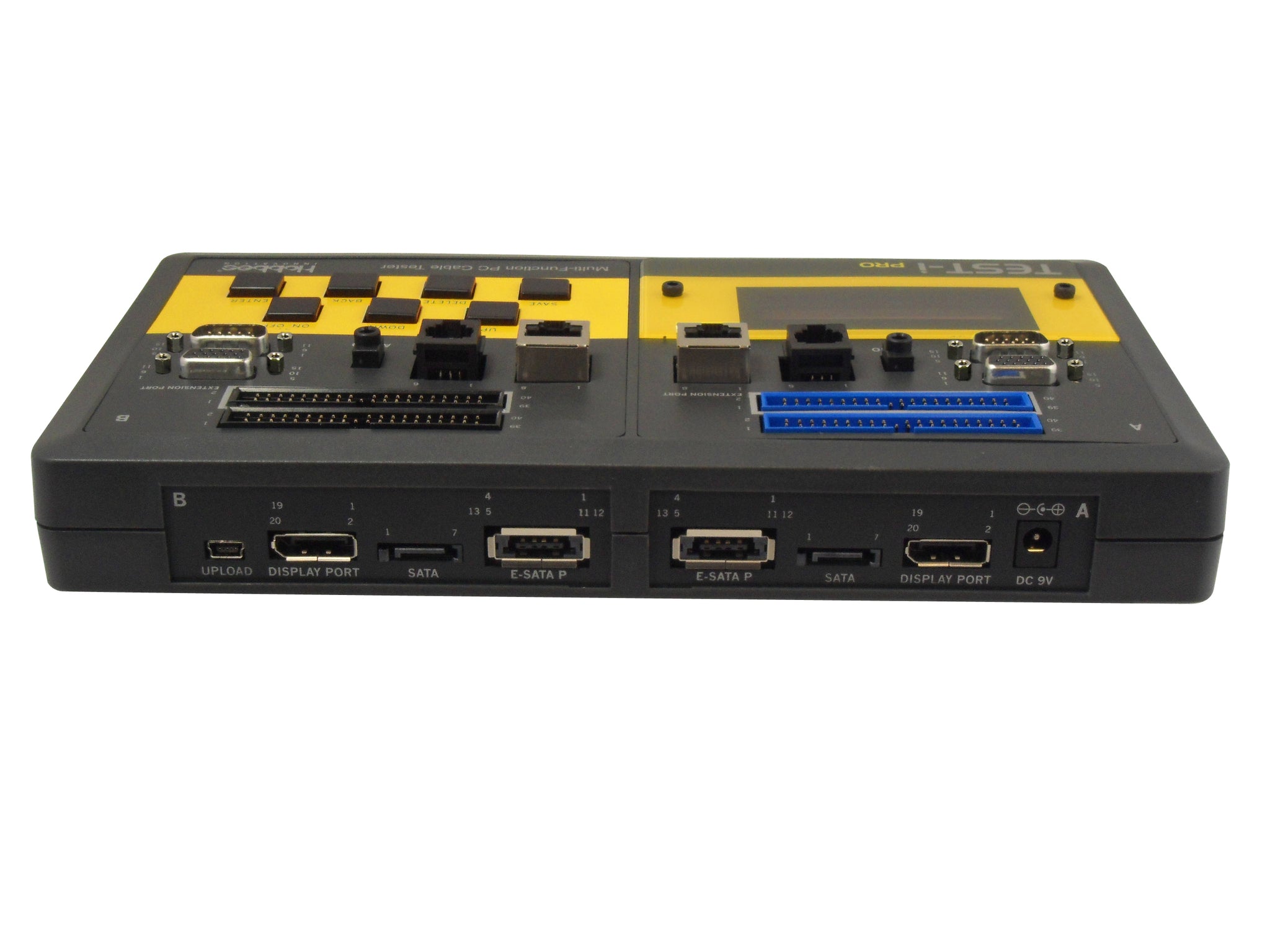

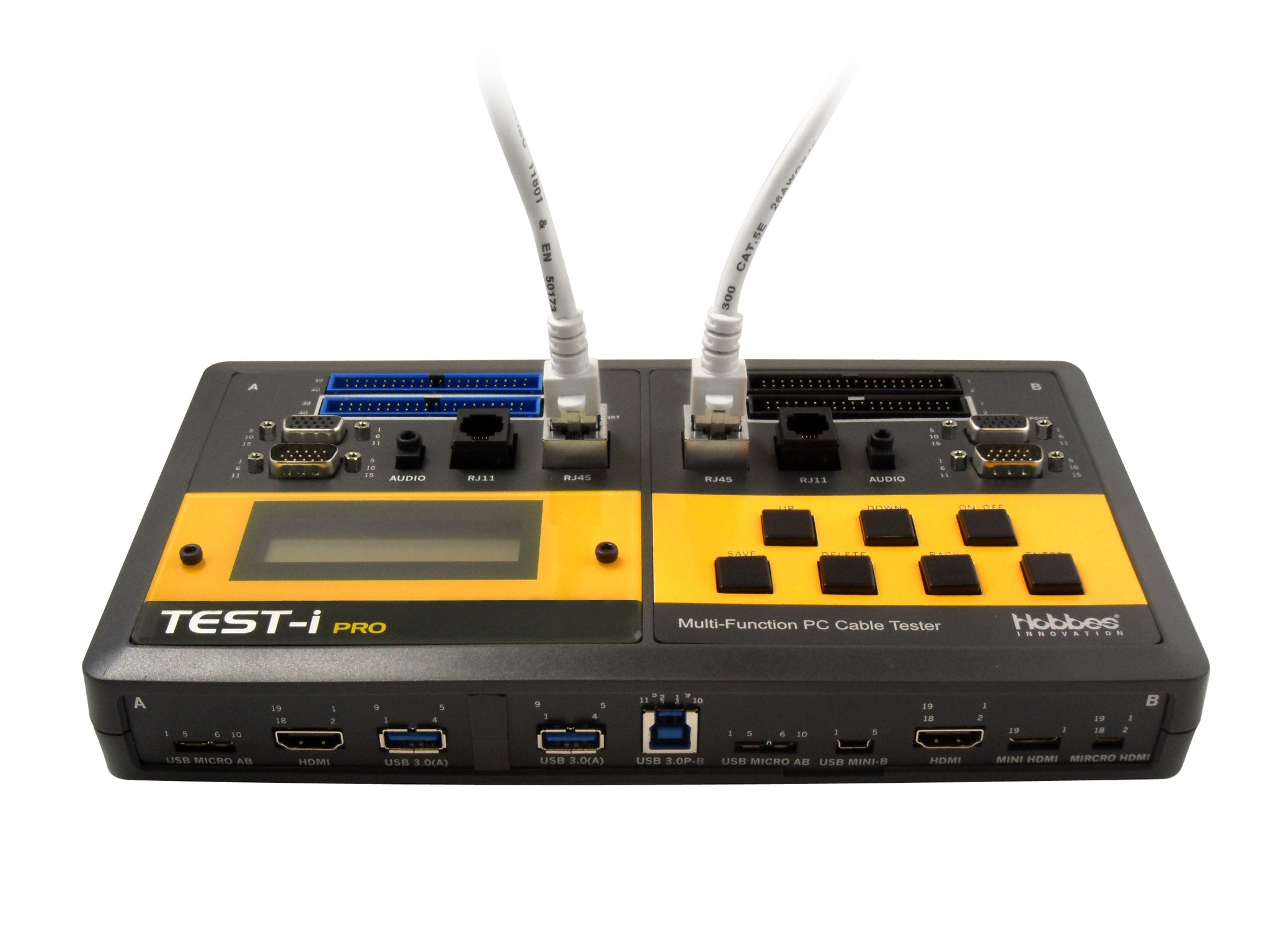

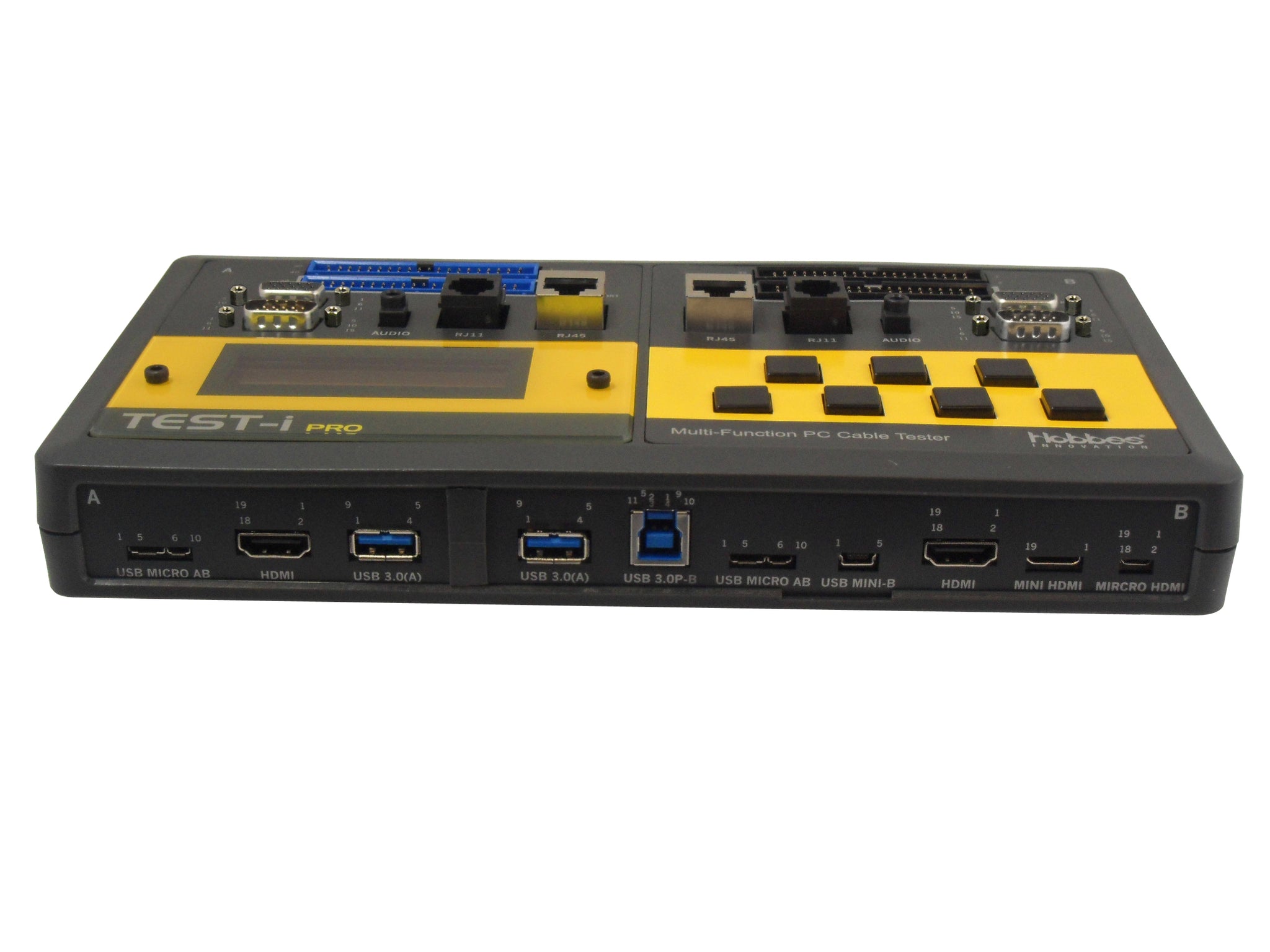

Hobbes TEST-i Pro is a universal cable tester for testing data cables, pc cables, audio cables, video cables, and more. This tester is specially designed for testing a comprehensive range of the most utilized cables today. TEST-i Pro will test a cable configuration and identify open, short, cross, and miss-wired cables. It will analyze each cable pinout (wire-mapping) to identify a faulty cable connection. From network cables, mobile phone cables to home entertainment cables, Test-i Pro is a handy tool to ensure the cables are faultless.
Key Features:
- Test Cables Continuity: Open Wires, Shorted Wires, Coss Wires or Miss-Wires
- Support 17 Types of Connectors (with optional DB25 Cable Adaptor)
- Pin-to-Pin Cable Configuration and Test Results
- Test Custom Cables with Different End Connector
- Store and Save Up To 100 Test Results
- Uploadable Cable Test Results to PC via USB cable
- Quick Test Function for Mass Cable Configuration Test
- LCD Display with Backlight
- 9v Battery or Optional DC 9v Power Adaptor
- Low Battery Indicator
- Storage Case
Connectors:
- IDC40
- HDB15 (M) • HDB5 (F)
- Audio
- RJ-11 • RJ-45
- eSATAp • SATA
- Display Port
- USB 3.0 (Type A) • USB 3.0 (Type B)
- Micro USB (AB)
- Mini-B USB
- HDMI • Mini HDMI • Micro HDMI
- Optional DB25 (note: see Part# 258011A to test DB25 cables)
