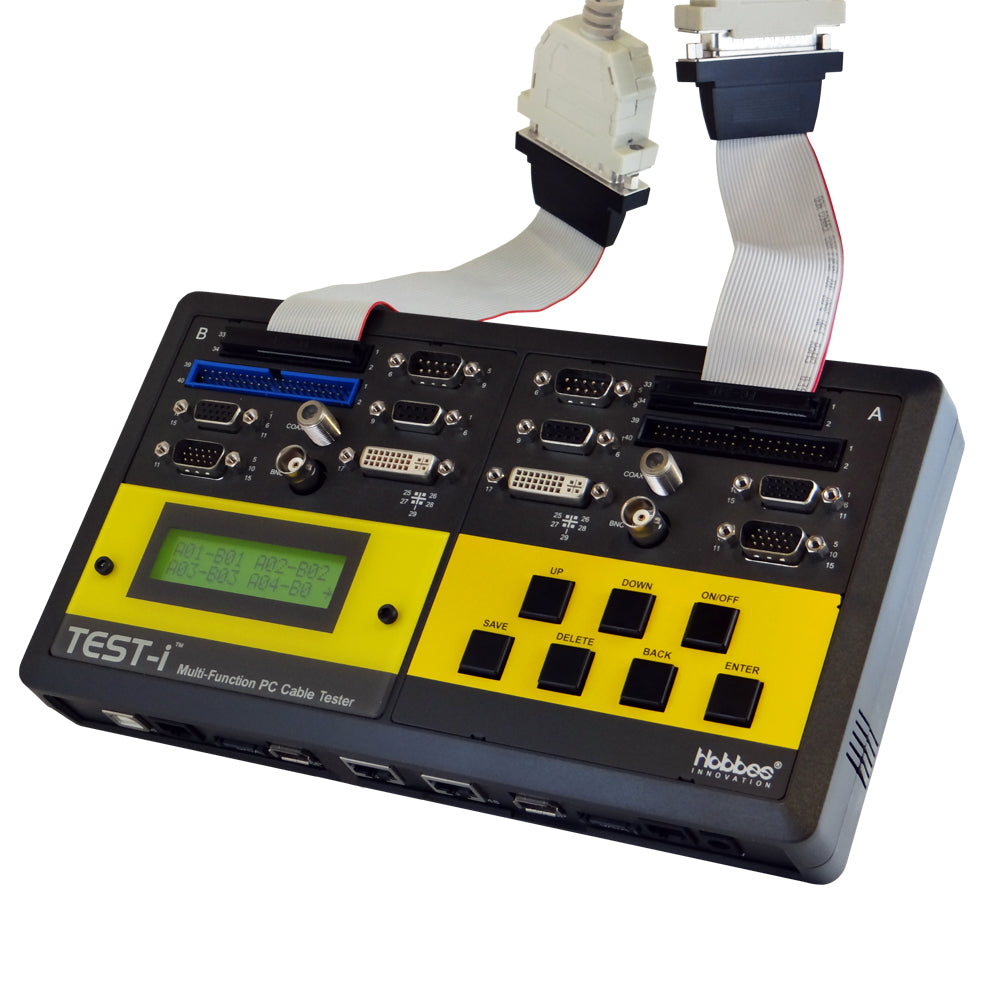

TEST-i Multi-Function Data Cable Tester is a specially designed "All-In-One" cable tester that analyzes the most essential cables use today. It will test and wire-map each cable pin connection to determine open, short, cross, or miss-wired cables. Cable configurations are displayed on the LCD and stored on the unit that can be uploaded to a PC for further analysis. For mass cable testing, TEST-i offers a "Quick Test" function that quickly determines if the cables "pass" or "fail" based on a user-defined standard. TEST-i is a valuable and effective tool for testing common data cables and custom cables.
Key Features:
- Test Cables Continuity: Open Wires, Shorted Wires, Coss Wires or Miss-Wires
- Support 19 Types of Connectors (with Included DB25 Cable Adaptor)
- Pin-to-Pin Cable Configuration and Test Results
- Test Custom Cables with Different End Connector
- Store and Save Up To 100 Test Results
- Uploadable Cable Test Results to PC via USB cable
- Quick Test Function for Mass Cable Configuration Test
- LCD Display with Backlight
- 9v Battery or Optional DC 9v Power Adaptor
- Low Battery Indicator
- Storage Case

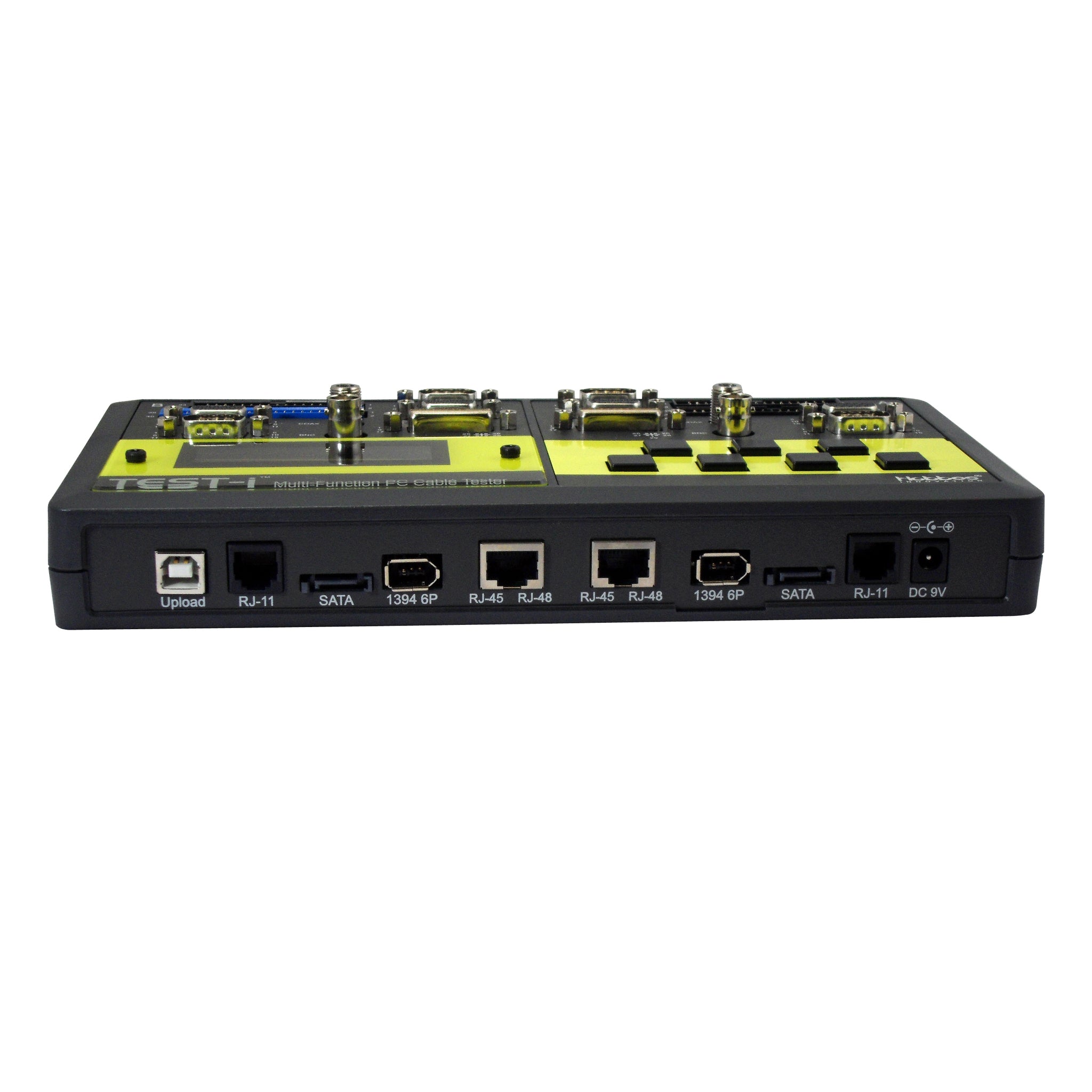

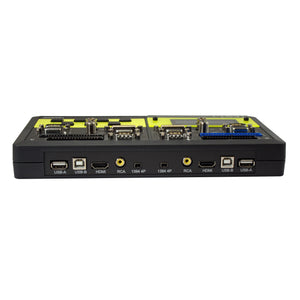

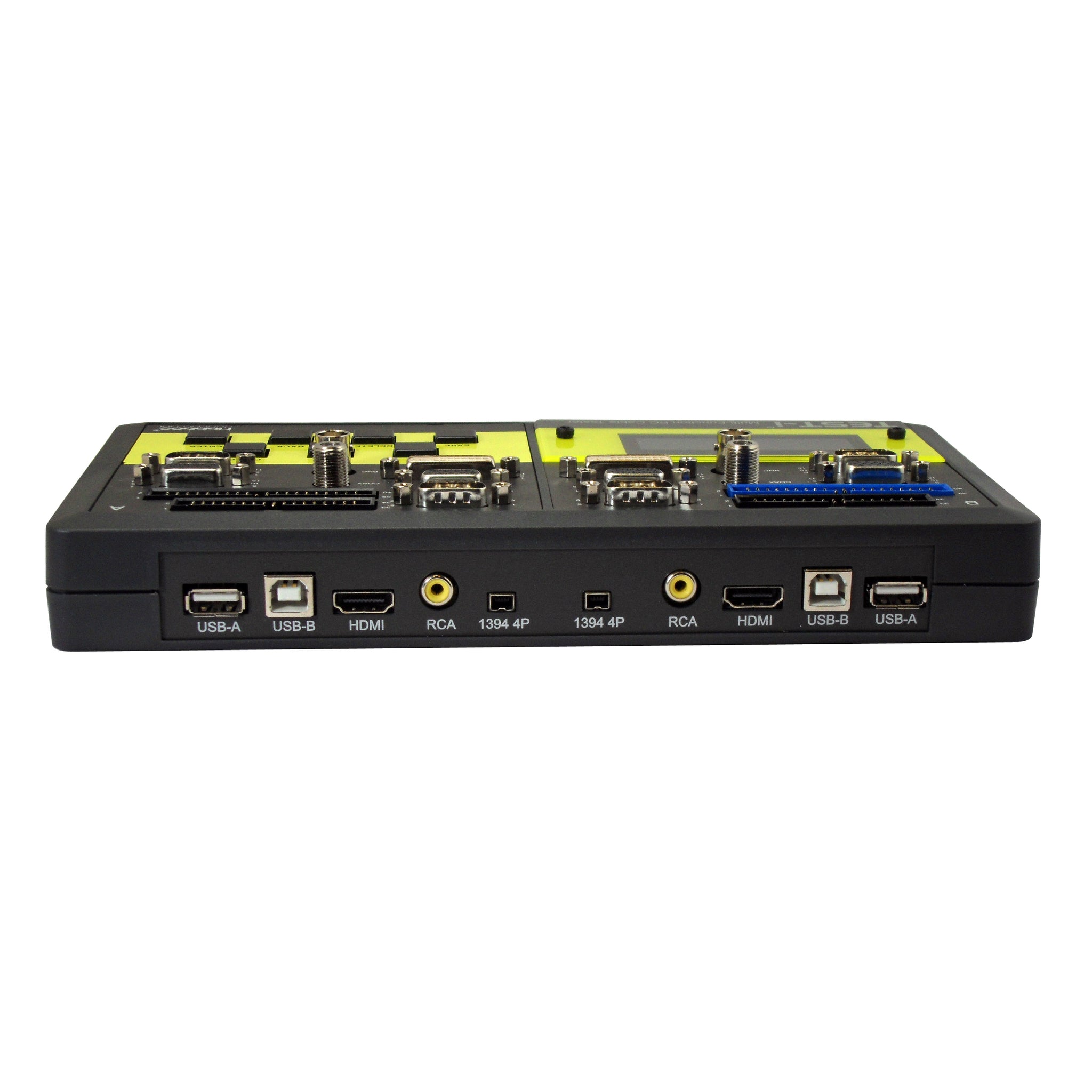

Connectors:
- IDC40 • IDC34
- DVI29
- HDB15 (M) • HDB15 (F)
- DB9 (M) • DB9 (F)
- Coax • BNC
- RJ-11 • RJ-45
- 1394-6p • 1394-4p
- SATA
- USB A • USB B
- HDMI
- RCA

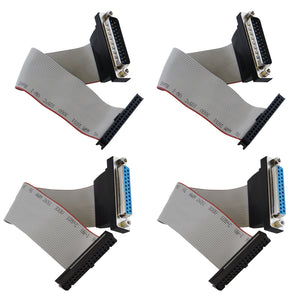

- DB25 Adaptor (DB25 Cable Testing).
Part# 258898A TEST-i - Multi-Function Data and PC Cable Tester (with DB25 Adaptor)
