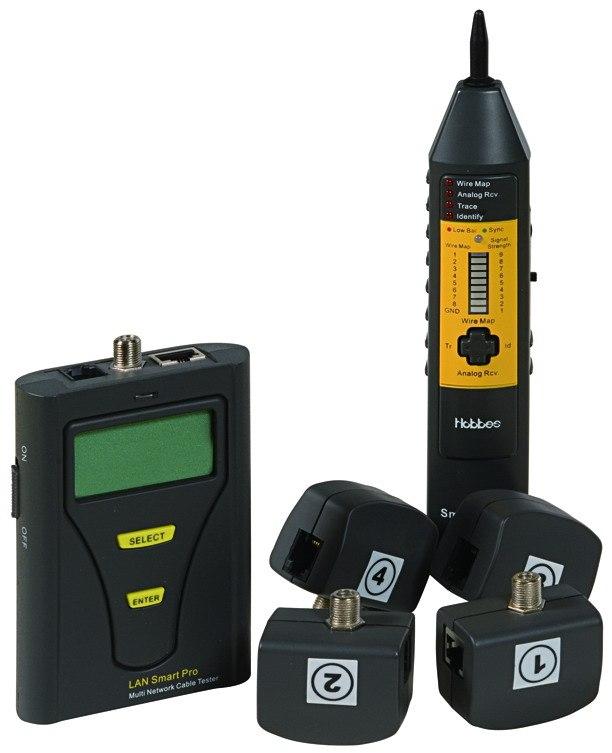

The LANSmart Pro Kit is the next generation of LANSmart, the most popular and versatile cable tester for technicians, installers, and network professionals on the market. It has all the key functions of the original LANsmart (cable test, cable length test, cable mapper, tone generator, port finder, and cable ID) with additional testing capabilities. With the included digital probe, tracing and identifying cables is much simpler using digital signal technology.
What's more, the LANSmart pro Kit is now capable of testing telephone and coaxial cables making this device an All-in-One companion for technicians, installers, and network professionals.
Key Features:
- All-in-One Tester: wire map, twisted mapping, short location, and quick test
- Pin-to-Pin Wiremap: open, short, reversed, crossed, split pairs, miss-wire, and shield continuity
- Cable Short Location: locates the short position
- Quick test function: memorizes a cable’s pin-out (for mass cable testing)
- Digital and Analog: Tone Generator
- Port Finder Function: To locate the corresponding cable or socket connected to the hub, switch, or router
- Measures 2/4/6 pin telephone cable length and faults
- Measures Cable length of Cat5, Cat5e, Cat6, and Cat7 cables without remote
- Self–Calibrating Function: Allows for increased measuring accuracy when testing length of non–standard cables
- Cable Organization: Indicates the I.D number of the remote terminator

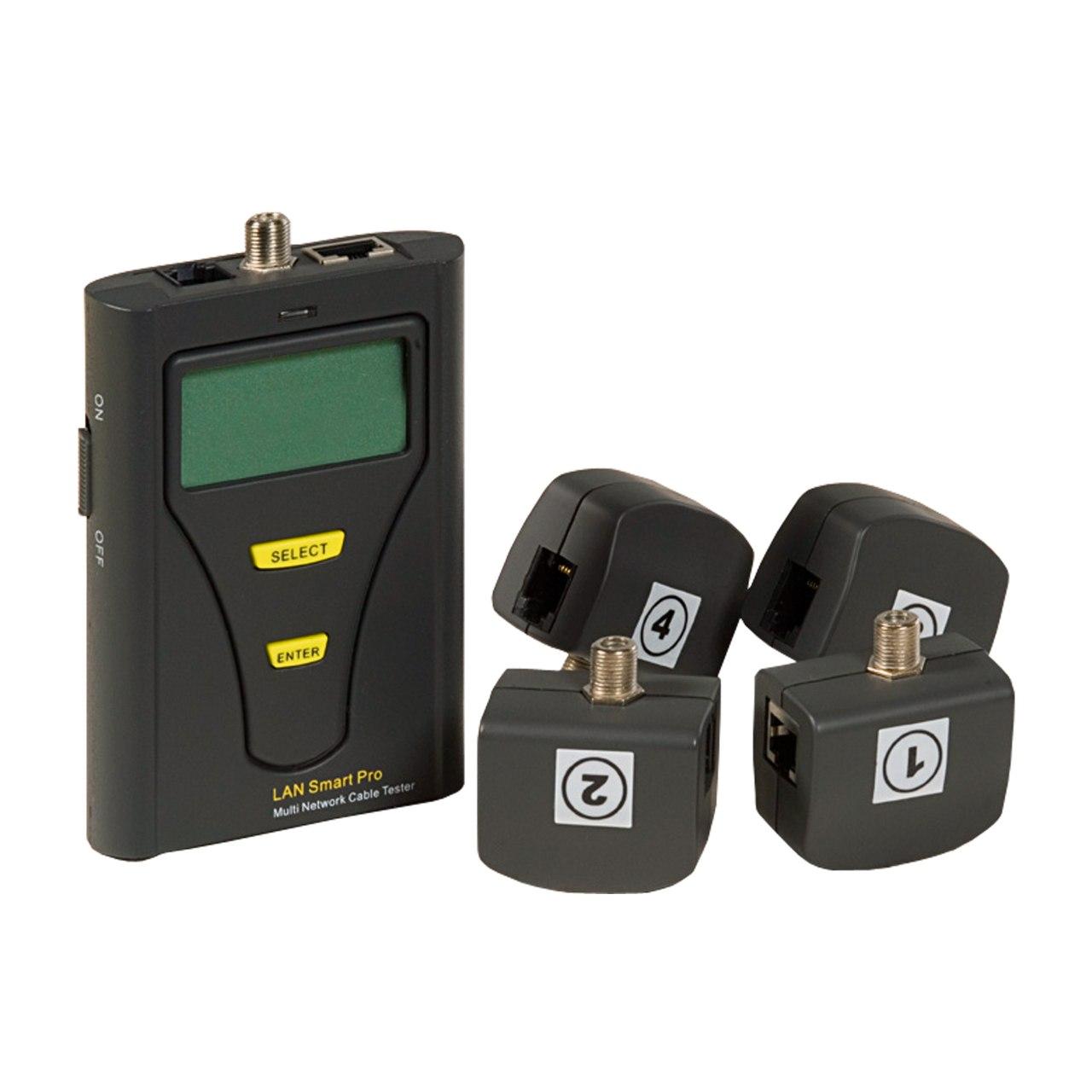

- 4 Remote terminator (plus 1 using SMARTprobe)
- Tests Telephone and Coaxial Cables
- RJ–45/RJ–11 tort protection from damage due to high voltage from the telephone line

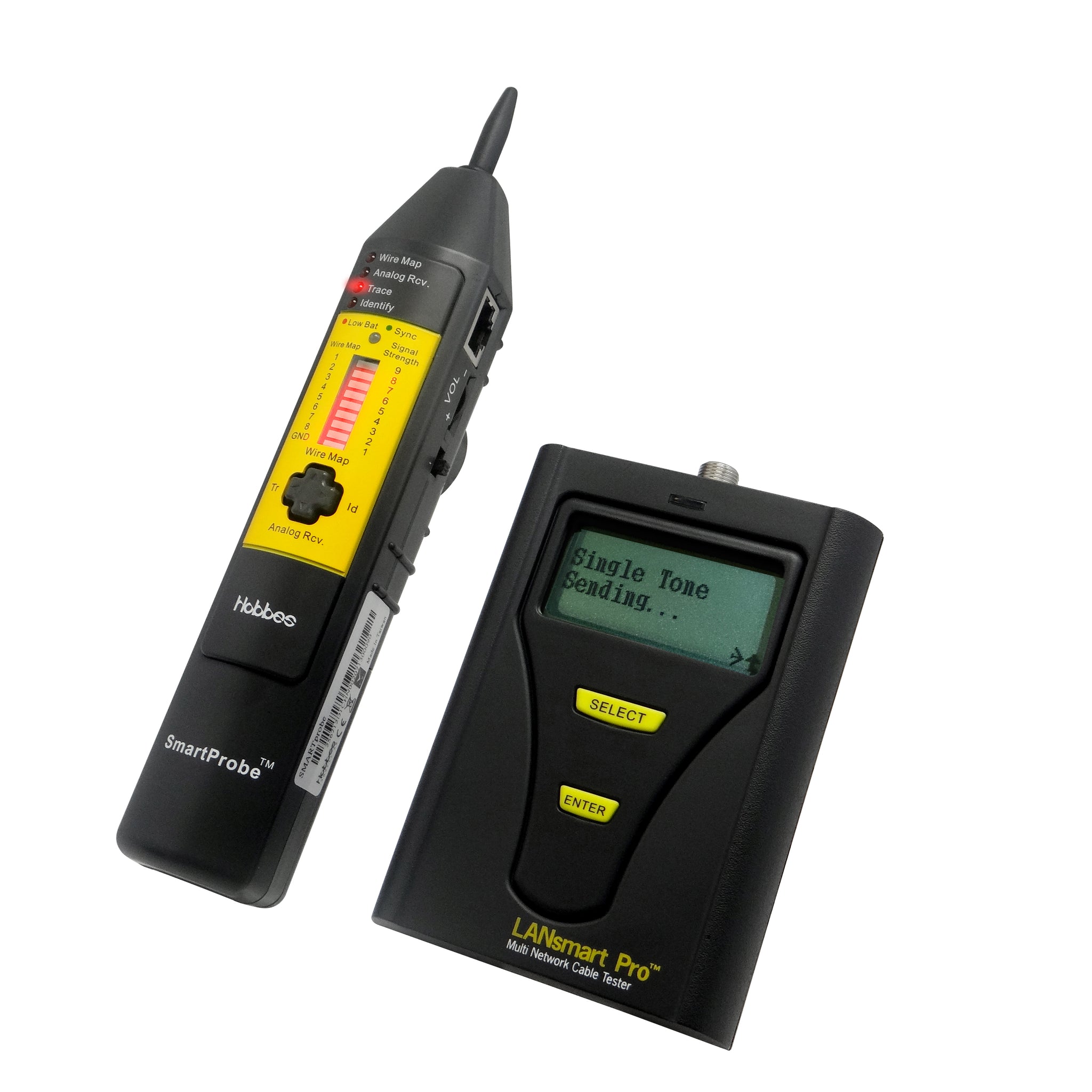

Digital Probe:
- 2 functionalities in one: Probe Unit and Remote Terminator (Cable Tester)
- Digital signal tracing technology to avoid noises and false signals
- Accurately traces and identify cables quickly and efficiently
- Can identify cables in bundles or at patch panels
- Includes audible and visual indicators
- Receives both digital and 1 kHz analog signals with both two distinct tones: One Note–Tone or Two Note–Tone
- 9 visual indicator levels for tone signal sensitivity
- Adjustable speaker volume for various working environments
- Special inductive tip for protection against accidental shorts from high voltage devices
Part# 256003PK LANSmart Pro Kit
